DC Fans 12cm ~25cm

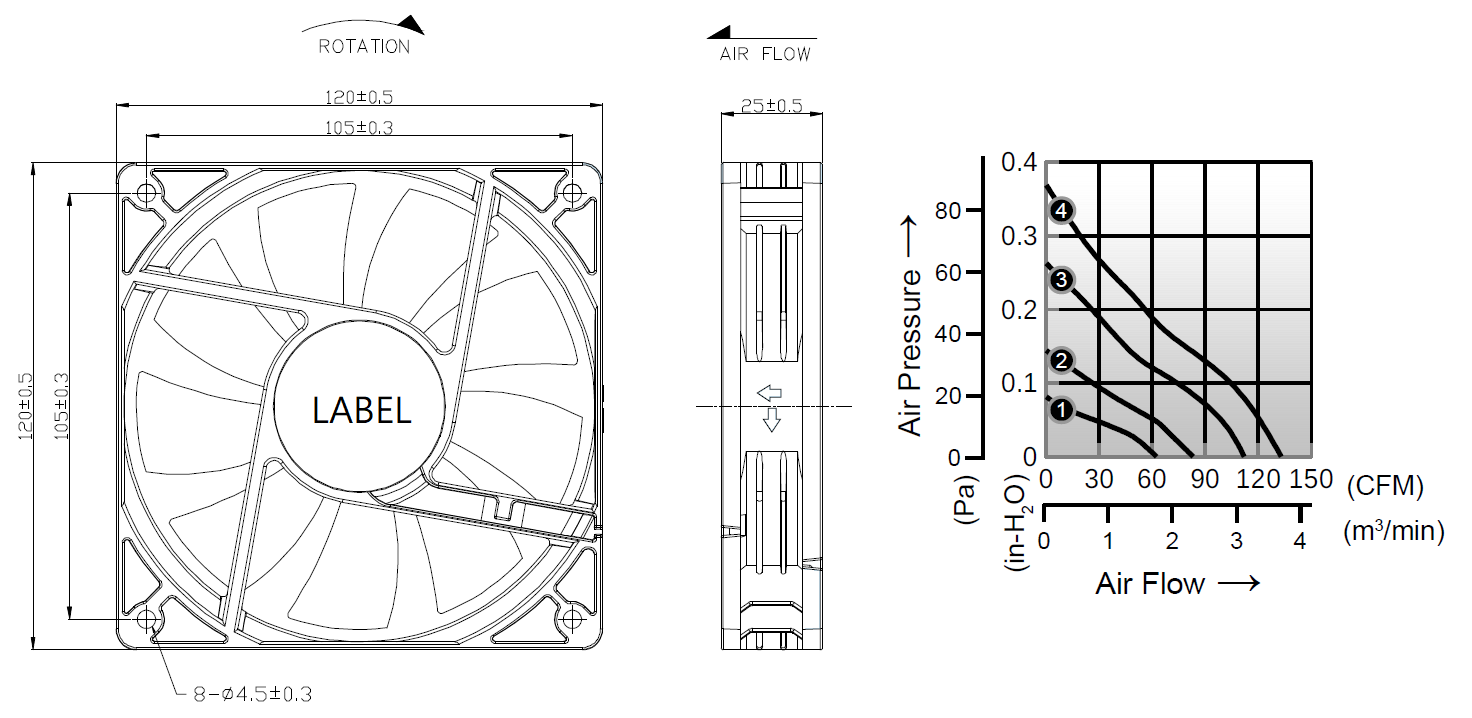

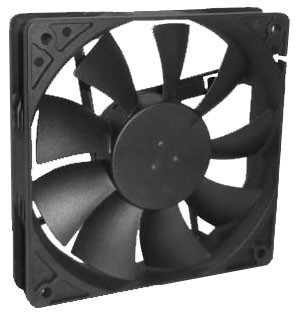

AD1225GT SERIES
- Size: 120 x 120 x 25mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 230.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 230.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1225V12BJWGT |
12 |
0.15 |
1.80 |
1500 |
62.4 |
0.08 |
30 |
|
① AD1225V24BJWGT |
24 |
0.10 |
2.40 |
1500 |
62.4 |
0.08 |
30 |
|
② AD1225V12BLWGT |
12 |
0.25 |
3.00 |
2000 |
83.1 |
0.14 |
36 |
|
② AD1225V24BLWGT |
24 |
0.15 |
3.60 |
2000 |
83.1 |
0.14 |
36 |
|
③ AD1225V12BMWGT |
12 |
0.40 |
4.80 |
2700 |
112.2 |
0.26 |
44 |
|
③ AD1225V24BMWGT |
24 |
0.20 |
4.80 |
2700 |
112.2 |
0.26 |
44 |
|
④ AD1225V12BHWGT |
12 |
0.65 |
7.80 |
3200 |
133.0 |
0.37 |
50 |
|
④ AD1225V24BHWGT |
24 |
0.35 |
8.40 |
3200 |
133.0 |
0.37 |
50 |
B = Ball Bearing
