DC Fans 12cm ~25cm

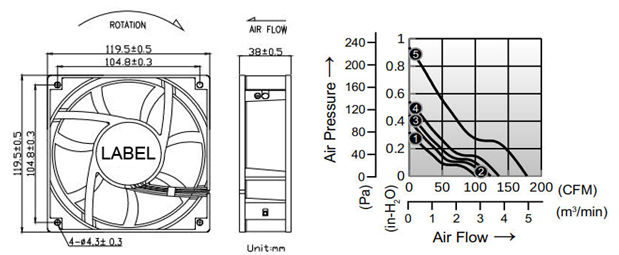

AD1238GFM SERIES
- Size: 120 x 120 x 38mm
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 320.0g
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 320.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1238V24BJWGFM |
24 |
0.18 |
4.32 |
2300 |
101.4 |
0.32 |
38 |
|
① AD1238V48BJWGFM |
48 |
0.09 |
4.32 |
2300 |
101.4 |
0.32 |
38 |
|
② AD1238V12BLWGFM |
12 |
0.40 |
4.80 |
2600 |
114.7 |
0.41 |
41 |
|
② AD1238V24BLWGFM |
24 |
0.25 |
6.00 |
2600 |
114.7 |
0.41 |
41 |
|
② AD1238V48BLWGFM |
48 |
0.18 |
8.64 |
2600 |
114.7 |
0.41 |
41 |
|
③ AD1238V12BMWGFM |
12 |
0.50 |
6.00 |
2900 |
123.2 |
0.45 |
44 |
|
③ AD1238V24BMWGFM |
24 |
0.40 |
9.60 |
2900 |
123.2 |
0.45 |
44 |
|
③ AD1238V48BMWGFM |
48 |
0.20 |
9.60 |
2900 |
123.2 |
0.45 |
44 |
|
④ AD1238V12BHWGFM |
12 |
0.80 |
9.60 |
3200 |
135.9 |
0.54 |
48 |
|
④ AD1238V24BHWGFM |
24 |
0.46 |
11.04 |
3200 |
135.9 |
0.54 |
48 |
|
④ AD1238V48BHWGFM |
48 |
0.30 |
14.40 |
3200 |
135.9 |
0.54 |
48 |
|
⑤ AD1238V12BUWGFM |
12 |
1.60 |
19.20 |
4200 |
178.4 |
0.94 |
54 |
|
⑤ AD1238V24BUWGFM |
24 |
0.80 |
19.20 |
4200 |
178.4 |
0.94 |
54 |
|
⑤ AD1238V48BUWGFM |
48 |
0.53 |
25.44 |
4200 |
178.4 |
0.94 |
54 |
B = Ball Bearing
