DC Fans 12cm ~25cm

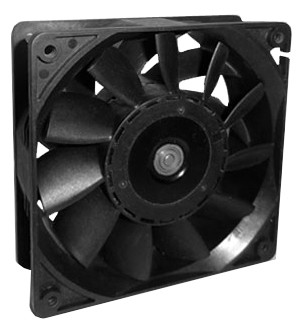

AD1238GB SERIES

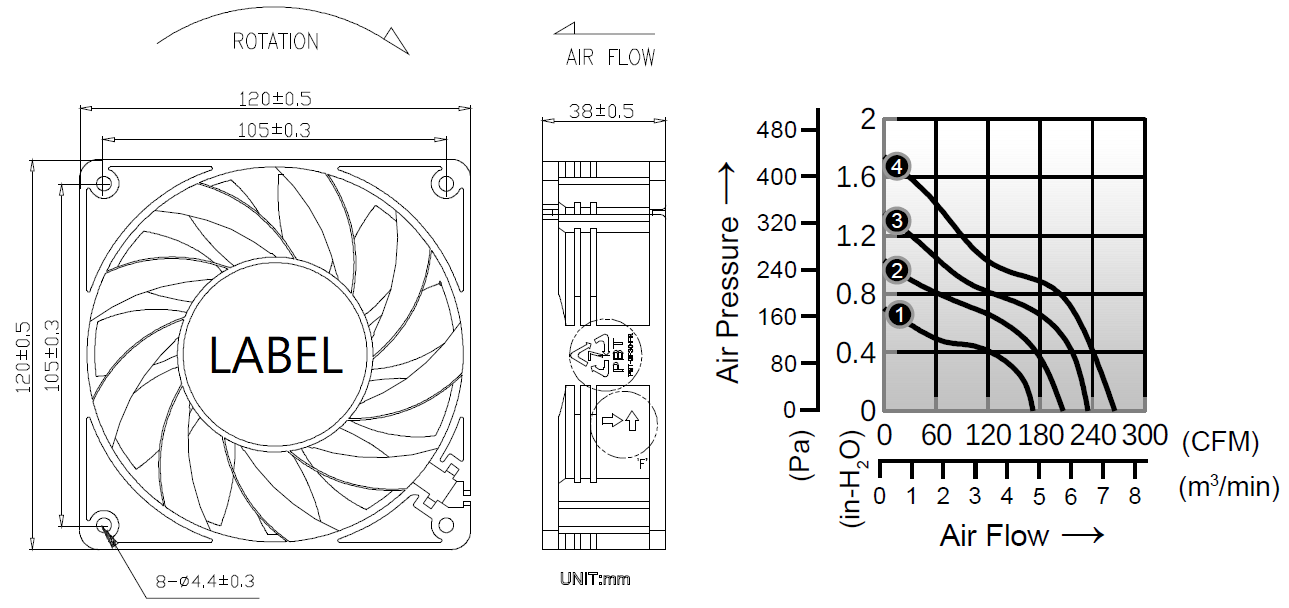

- Size: 120 x 120 x 38mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 450.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 450.0g
Download PDF
AD1238GB SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1238V12BLWGB |
12 |
2.00 |
24.00 |
4000 |
171.4 |
0.70 |
60 |
|
① AD1238V24BLWGB |
24 |
1.30 |
31.20 |
4000 |
171.4 |
0.70 |
60 |
|
① AD1238V48BLWGB |
48 |
0.60 |
28.80 |
4000 |
171.4 |
0.70 |
60 |
|
② AD1238V12BMWGB |
12 |
2.50 |
30.00 |
4800 |
206.3 |
1.03 |
65 |
|
② AD1238V24BMWGB |
24 |
1.80 |
43.20 |
4800 |
206.3 |
1.03 |
65 |
|
② AD1238V48BMWGB |
48 |
0.90 |
43.20 |
4800 |
206.3 |
1.03 |
65 |
|
③ AD1238V12BHWGB |
12 |
3.88 |
46.56 |
5500 |
234.7 |
1.35 |
69 |
|
③ AD1238V24BHWGB |
24 |
2.50 |
60.00 |
5500 |
234.7 |
1.35 |
69 |
|
③ AD1238V48BHWGB |
48 |
1.20 |
57.60 |
5500 |
234.7 |
1.35 |
69 |
|
④ AD1238V24BUWGB |
24 |
2.72 |
65.28 |
6200 |
265.8 |
1.74 |
72 |
|
④ AD1238V48BUWGB |
48 |
1.30 |
62.40 |
6200 |
265.8 |
1.74 |
72 |
B = Ball Bearing
