DC Fans 12cm ~25cm

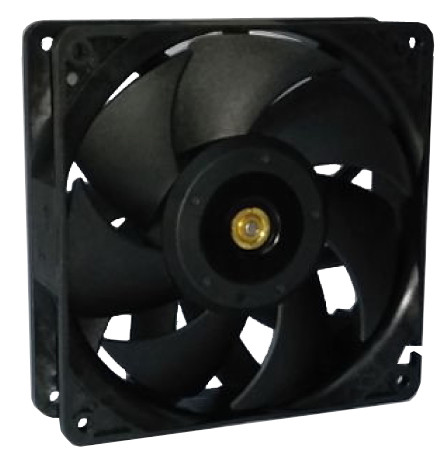

AD1438GB SERIES

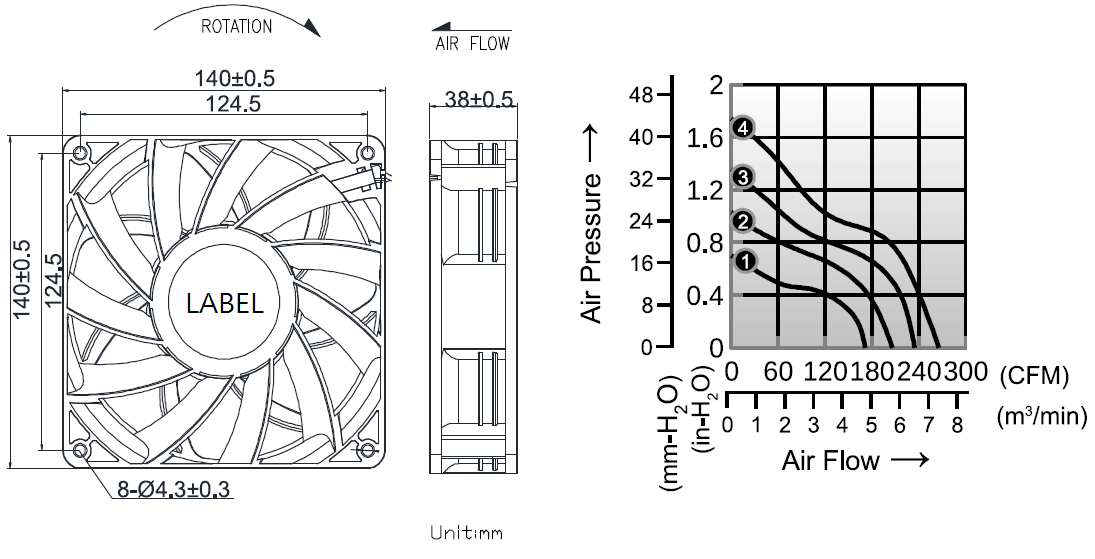

- Size: 140 x 140 x 38mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 450.0g



 Model Number

Voltage

Current

Power

Speed

Air Flow

Pressure

Noise

(V)

(A)

(W)

(RPM)

(CFM)

(inH2O)

dB(A)

①    AD1438V12BLWGB

12

2.00

24.00

5200

212.0

1.20

60

①    AD1438V24BLWGB

24

1.30

31.20

5200

212.0

1.20

60

①    AD1438V48BLWGB

48

0.60

28.80

5200

212.0

1.20

60

②    AD1438V12BMWGB

12

2.50

30.00

6600

272.0

1.93

65

②    AD1438V24BMWGB

24

1.80

43.20

6600

272.0

1.93

65

②    AD1438V48BMWGB

48

0.96

46.08

6600

272.0

1.93

65

③    AD1438V12BHWGB

12

3.88

46.56

7600

310.0

2.57

69

③    AD1438V24BHWGB

24

2.50

60.00

7600

310.0

2.57

69

③    AD1438V48BHWGB

48

1.20

57.60

7600

310.0

2.57

69

B = Ball Bearing
