DC Fans 12cm ~25cm

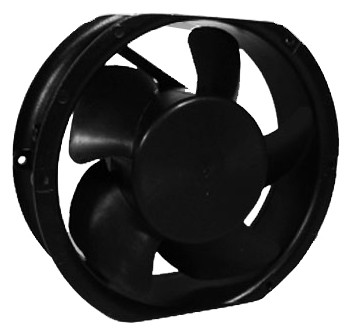

AD1751GE SERIES
- Size: 172 x 152 x 51mm
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 610.0g
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 610.0g
Download PDF
AD1751GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1751V24BJWGE |
24 |
0.75 |
18.00 |
3500 |
263.0 |
0.82 |
57 |
|
① AD1751V48BJWGE |
48 |
0.50 |
24.00 |
3500 |
263.0 |
0.82 |
57 |
|
② AD1751V24BLWGE |
24 |
1.00 |
24.00 |
4000 |
291.0 |
0.91 |
62 |
|
② AD1751V48BLWGE |
48 |
0.50 |
24.00 |
4000 |
291.0 |
0.91 |
62 |
|
③ AD1751V24BMWGE |
24 |
1.40 |
33.60 |
4400 |
323.0 |
1.06 |
64 |
|
③ AD1751V48BMWGE |
48 |
0.70 |
33.60 |
4400 |
323.0 |
1.06 |
64 |
|
④ AD1751V24BHWGE |
24 |
1.60 |
38.40 |
4800 |
350.0 |
1.24 |
66 |
|
④ AD1751V48BHWGE |
48 |
0.80 |
38.40 |
4800 |
350.0 |
1.24 |
66 |
|
⑤ AD1751V24BUWGE |
24 |
2.40 |
57.60 |
5200 |
38.0 |
1.36 |
68 |
|
⑤ AD1751V48BUWGE |
48 |
1.00 |
48.00 |
5200 |
378.0 |
1.36 |
68 |
|
⑥ AD1751V48BVWGE |
48 |
2.30 |
110.40 |
6500 |
472.5 |
2.12 |
73 |
B = Ball Bearing
