DC Fans 12cm ~25cm

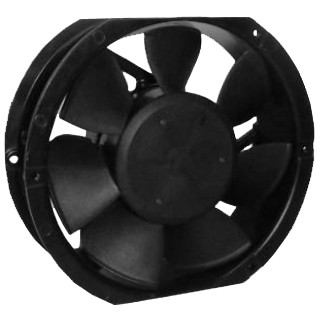

AD1751GF SERIES

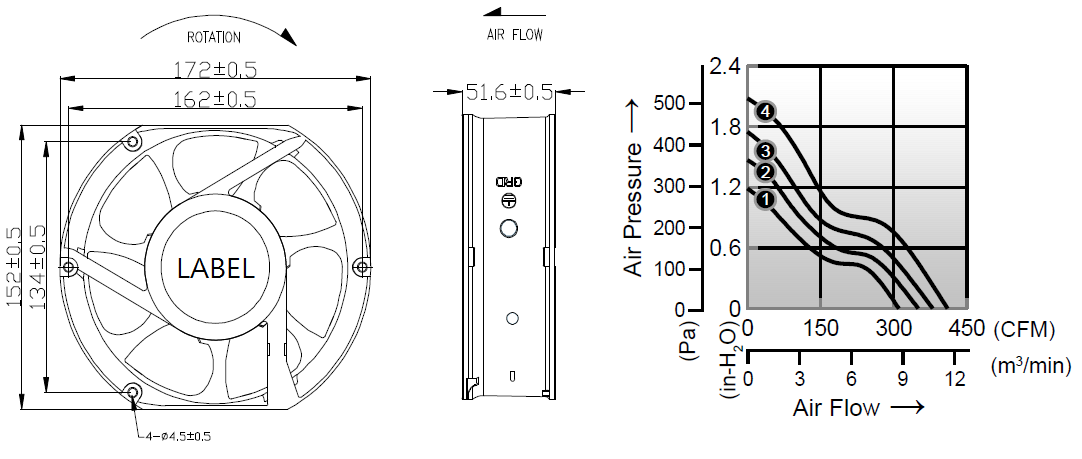

- Size: 172 x 152 x 51mm
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 700.0g
- Housing: Metal Frame
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 700.0g
Download PDF
AD1751GF SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD1751V24BLWGF |
24 |
1.00 |
24.00 |
4000 |
310.6 |
1.19 |
60 |
|
① AD1751V48BLWGF |
48 |
0.71 |
34.08 |
4000 |
310.6 |
1.19 |
60 |
|
② AD1751V24BMWGF |
24 |
1.40 |
33.60 |
4400 |
350.5 |
1.47 |
62 |
|
② AD1751V48BMWGF |
48 |
0.88 |
42.24 |
4400 |
350.5 |
1.47 |
62 |
|
③ AD1751V24BHWGF |
24 |
1.60 |
38.40 |
4800 |
380.3 |
1.75 |
64 |
|
③ AD1751V48BHWGF |
48 |
1.22 |
58.56 |
4800 |
380.3 |
1.75 |
64 |
|
④ AD1751V24BUWGF |
24 |
2.40 |
57.60 |
5200 |
410.5 |
2.08 |
67 |
|
④ AD1751V48BUWGF |
48 |
1.52 |
72.96 |
5200 |
410.5 |
2.08 |
67 |
B = Ball Bearing
