DC Fans 2cm ~5cm

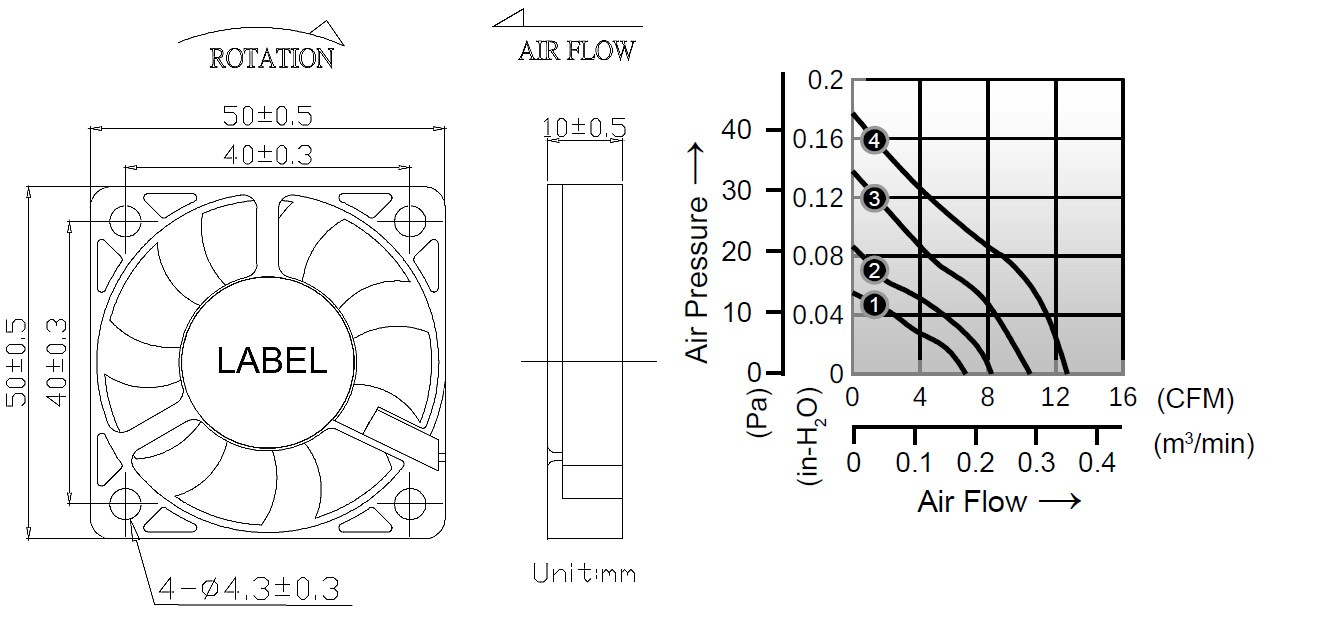

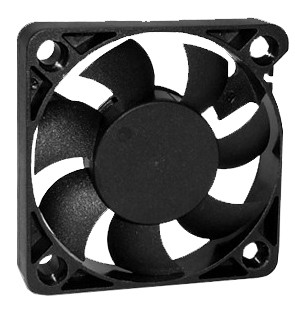

AD5010GE SERIES
- Size: 50 x 50 x 10mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 32.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 32.0g
Download PDF
AD5010GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD5010V05_JWGE |
12 |
0.08 |
0.96 |
3500 |
6.7 |
0.05 |
18 |
|
① AD5010V12_JWGE |
12 |
0.05 |
0.60 |
3500 |
6.7 |
0.05 |
18 |
|
① AD5010V24_JWGE |
12 |
0.06 |
0.72 |
3500 |
6.7 |
0.05 |
18 |
|
② AD5010V05_LWGE |
12 |
0.12 |
1.44 |
4500 |
8.2 |
0.09 |
25 |
|
② AD5010V12_LWGE |
24 |
0.07 |
1.68 |
4500 |
8.2 |
0.09 |
25 |
|
② AD5010V24_LWGE |
24 |
0.07 |
1.68 |
4500 |
8.2 |
0.09 |
25 |
|
③ AD5010V05_MWGE |
12 |
0.16 |
1.92 |
5500 |
10.5 |
0.14 |
30 |
|
③ AD5010V12_MWGE |
12 |
0.08 |
0.96 |
5500 |
10.5 |
0.14 |
30 |
|
③ AD5010V24_MWGE |
12 |
0.08 |
0.96 |
5500 |
10.5 |
0.14 |
30 |
|
④ AD5010V05_HWGE |
24 |
0.20 |
4.80 |
6500 |
12.7 |
0.18 |
35 |
|
④ AD5010V12_HWGE |
24 |
0.10 |
2.40 |
6500 |
12.7 |
0.18 |
35 |
|
④ AD5010V24_HWGE |
24 |
0.09 |
2.16 |
6500 |
12.7 |
0.18 |
35 |
_ for B / F = Ball Bearing / Fluid Bearing
