DC Fans 2cm ~5cm

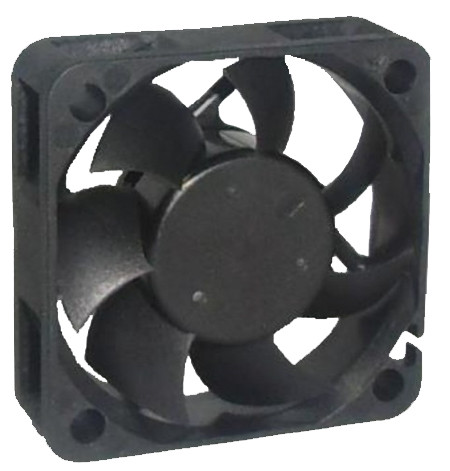

AD5015GC SERIES

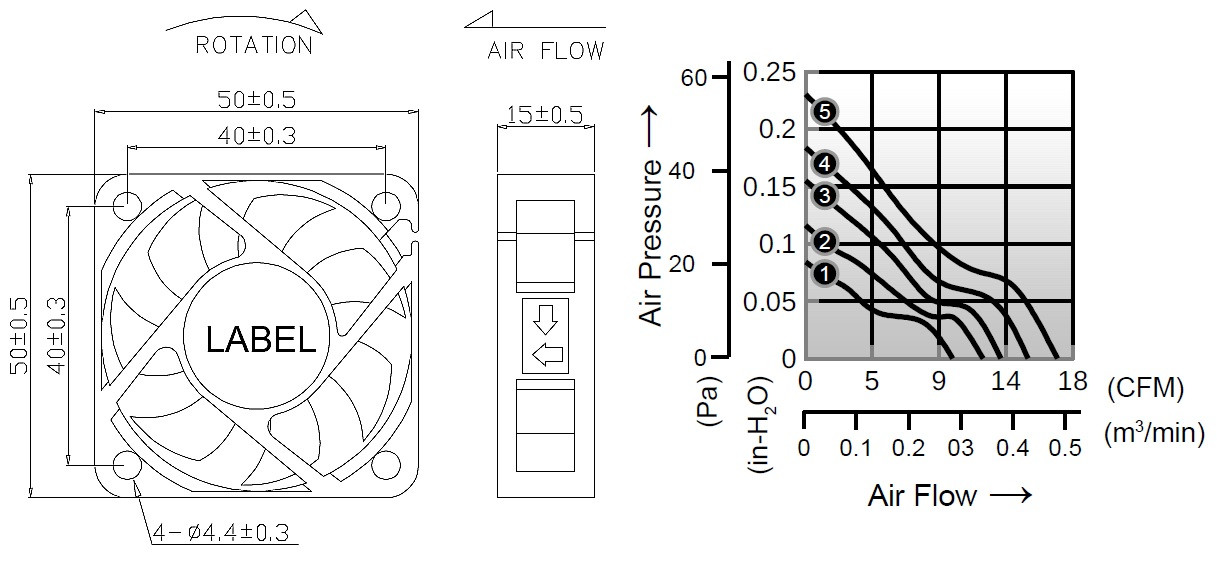

- Size: 50 x 50 x 15mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 38.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 38.0g
Download PDF
AD5015GC SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD5015V12_JWGC |
12 |
0.06 |
0.72 |
3600 |
9.9 |
0.08 |
24 |
|
① AD5015V24_JWGC |
24 |
0.04 |
0.96 |
3600 |
9.9 |
0.08 |
24 |
|
② AD5015V12_LWGC |
12 |
0.07 |
0.84 |
4200 |
12.2 |
0.12 |
27 |
|
② AD5015V24_LWGC |
24 |
0.05 |
1.20 |
4200 |
12.2 |
0.12 |
27 |
|
③ AD5015V12_MWGC |
12 |
0.09 |
1.08 |
4800 |
13.2 |
0.16 |
30 |
|
③ AD5015V24_MWGC |
24 |
0.06 |
1.44 |
4800 |
13.2 |
0.16 |
30 |
|
④ AD5015V12_HWGC |
12 |
0.11 |
1.32 |
5400 |
15.0 |
0.18 |
32 |
|
④ AD5015V24_HWGC |
24 |
0.07 |
1.68 |
5400 |
15.0 |
0.18 |
32 |
|
⑤ AD5015V12_UWGC |
12 |
0.13 |
1.56 |
6000 |
17.0 |
0.23 |
36 |
|
⑤ AD5015V24_UWGC |
24 |
0.08 |
1.92 |
6000 |
17.0 |
0.23 |
35 |
_ for B / F = Ball Bearing / Fluid Bearing
