DC Fans 2cm ~5cm

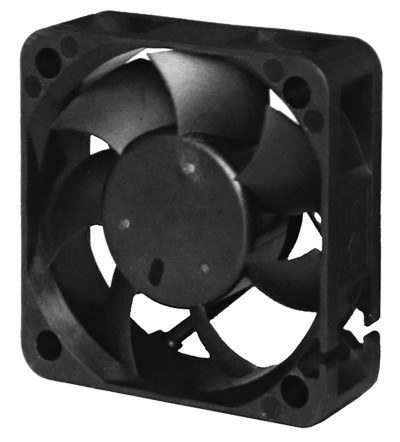

AD5020GE SERIES
- Size: 50 x 50 x 20mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 40.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 40.0g
Download PDF
AD5020GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD5020V12_IWGE |
12 |
0.10 |
1.20 |
4000 |
10.1 |
0.10 |
24 |
|
① AD5020V24_IWGE |
24 |
0.07 |
1.68 |
4000 |
10.1 |
0.10 |
24 |
|
② AD5020V12_JWGE |
12 |
0.13 |
1.56 |
4800 |
12.7 |
0.14 |
28 |
|
② AD5020V24_JWGE |
24 |
0.08 |
1.92 |
4800 |
12.7 |
0.14 |
28 |
|
③ AD5020V12_LWGE |
12 |
0.15 |
1.80 |
5600 |
14.8 |
0.18 |
32 |
|
③ AD5020V24_LWGE |
24 |
0.10 |
2.4 |
5600 |
14.8 |
0.18 |
32 |
|
④ AD5020V12_MWGE |
12 |
0.21 |
2.52 |
6400 |
17.6 |
0.25 |
36 |
|
④ AD5020V24_MWGE |
24 |
0.12 |
2.88 |
6400 |
17.6 |
0.25 |
36 |
|
⑤ AD5020V12_HWGE |
12 |
0.21 |
2.52 |
7000 |
20.3 |
0.30 |
38 |
|
⑤ AD5020V24_HWGE |
24 |
0.12 |
2.88 |
7000 |
20.3 |
0.30 |
38 |
_ for B / S = Ball Bearing / Sleeve Bearing
