DC Fans 2cm ~5cm

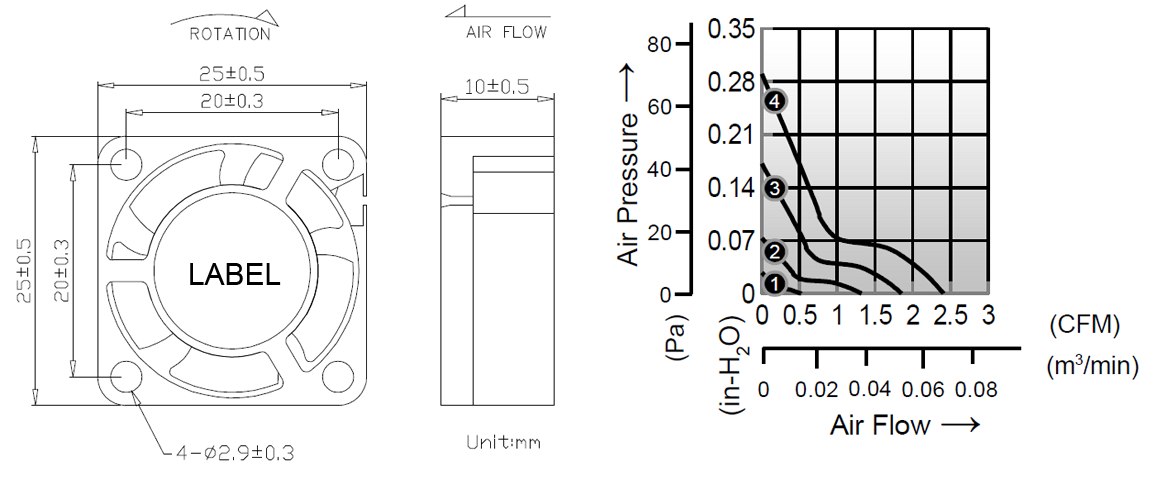

AD2510GE SERIES
- Size: 25 x 25 x 10mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 8.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 8.0g
Download PDF
AD2510GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD2510V05_JWGE |
5 |
0.05 |
0.25 |
4000 |
0.52 |
0.03 |
10 |
|
① AD2510V12_LWGE |
12 |
0.07 |
0.84 |
7000 |
1.32 |
0.07 |
20 |
|
② AD2510V05_LWGE |
5 |
0.08 |
0.40 |
7000 |
1.32 |
0.07 |
20 |
|
② AD2510V12_MWGE |
12 |
0.08 |
0.96 |
10000 |
1.85 |
0.17 |
24 |
|
③ AD2510V05_MWGE |
5 |
0.13 |
0.65 |
10000 |
1.85 |
0.17 |
24 |
|
④ AD2510V05_HWGE |
5 |
0.22 |
1.10 |
13000 |
2.41 |
0.29 |
28 |
|
④ AD2510V12_HWGE |
12 |
0.12 |
1.44 |
13000 |
2.41 |
0.29 |
28 |
|
④ AD2510V24_HWGE |
24 |
0.07 |
1.68 |
13000 |
2.41 |
0.29 |
28 |
_ for B / F = Ball Bearing / Fluid Bearing
