DC Fans 2cm ~5cm

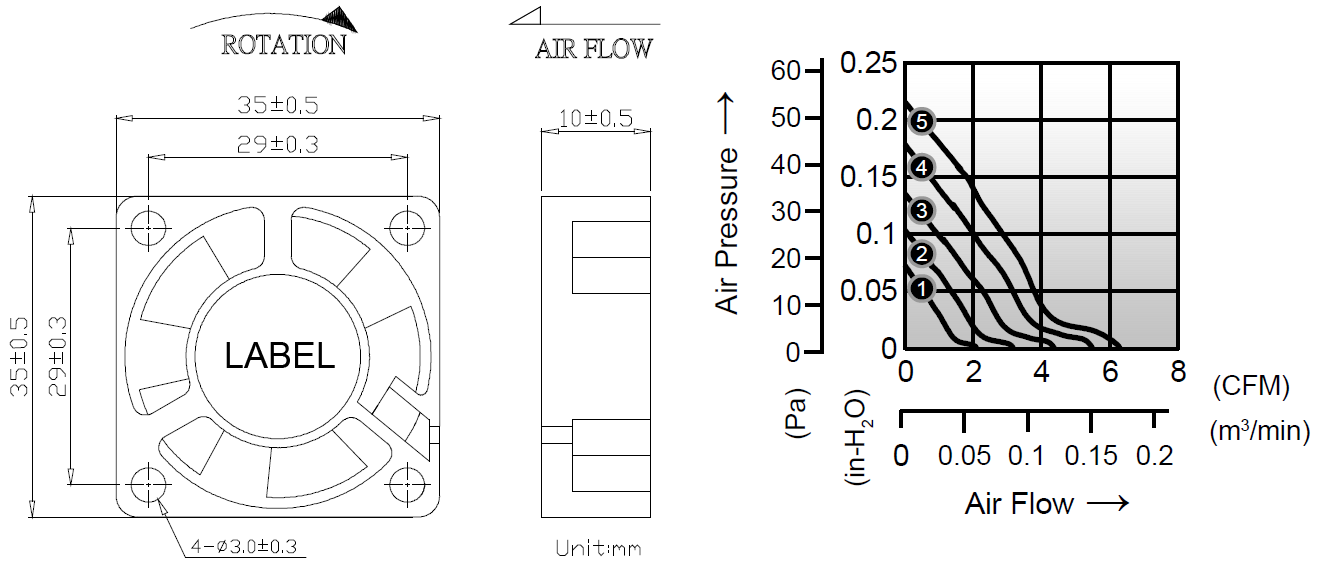

AD3510GE SERIES
- Size: 35 x 35 x 10mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 11.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 11.0g
Download PDF
AD3510GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD3510V05_MWGE |
5 |
0.05 |
0.25 |
5000 |
2.10 |
0.07 |
18 |
|
② AD3510V05_HWGE |
5 |
0.06 |
0.30 |
6000 |
3.17 |
0.10 |
20 |
|
③ AD3510V05_UWGE |
5 |
0.07 |
0.35 |
7000 |
4.37 |
0.14 |
23 |
|
③ AD3510V12_UWGE |
12 |
0.03 |
0.36 |
7000 |
4.37 |
0.14 |
23 |
|
④ AD3510V05_VWGE |
5 |
0.04 |
0.20 |
8000 |
5.51 |
0.18 |
25 |
|
④ AD3510V12_VWGE |
12 |
0.04 |
0.48 |
8000 |
5.51 |
0.18 |
25 |
|
⑤ AD3510V05_WWGE |
5 |
0.01 |
0.05 |
9000 |
6.30 |
0.22 |
28 |
|
⑤ AD3510V12_WWGE |
12 |
0.07 |
0.84 |
9000 |
6.30 |
0.22 |
28 |
_ for B / F = Ball Bearing / Fluid Bearing
