DC Fans 2cm ~5cm
AD3828GB SERIES

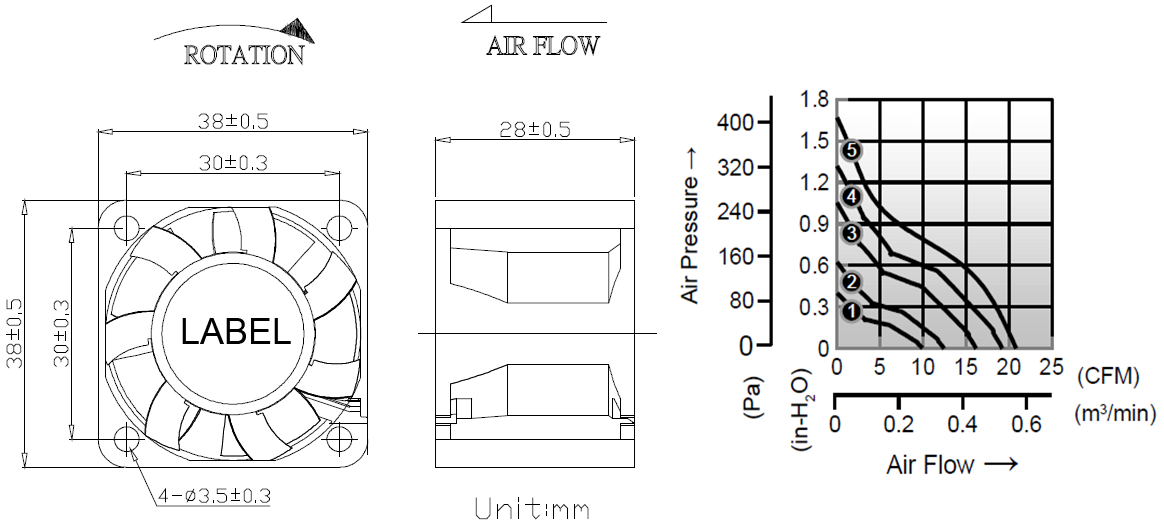

- Size: 38 x 38 x 28mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 40.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 40.0g
Download PDF
AD3828GB SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD3828V12BLWGB |
12 |
0.11 |
1.32 |
8000 |
9.4 |
0.39 |
38 |
|
② AD3828V12BMWGB |
12 |
0.15 |
1.80 |
10000 |
12.5 |
0.63 |
44 |
|
③ AD3828V12BHWGB |
12 |
0.29 |
3.48 |
13000 |
16.3 |
1.02 |
51 |
|
④ AD3828V12BUWGB |
12 |
0.48 |
5.76 |
15000 |
19.2 |
1.37 |
55 |
|
⑤ AD3828V12BVWGB |
12 |
0.85 |
10.20 |
17000 |
20.8 |
1.67 |
59 |
B = Ball Bearing
