DC Fans 2cm ~5cm

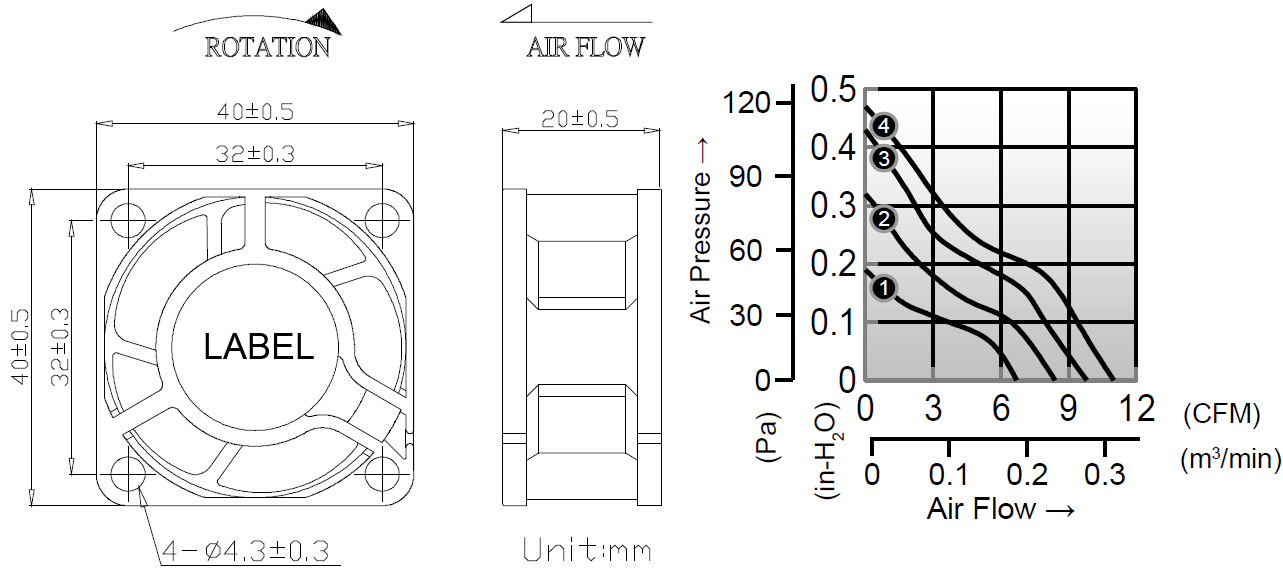

AD4020GE SERIES
- Size: 40 x 40 x 20mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 27.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 27.0g
Download PDF
AD4020GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4020V12_LWGE |
12 |
0.10 |
1.20 |
5000 |
6.7 |
0.19 |
23 |
|
① AD4020V24_LWGE |
24 |
0.07 |
1.68 |
5000 |
6.7 |
0.32 |
23 |
|
② AD4020V12_MWGE |
12 |
0.12 |
1.44 |
6500 |
8.4 |
0.43 |
27 |
|
② AD4020V24_MWGE |
24 |
0.09 |
2.16 |
6500 |
8.4 |
0.47 |
27 |
|
③ AD4020V12_HWGE |
12 |
0.16 |
1.92 |
8600 |
9.8 |
0.19 |
36 |
|
③ AD4020V24_HWGE |
24 |
0.13 |
3.12 |
8600 |
9.8 |
0.32 |
36 |
|
④ AD4020V12_UWGE |
12 |
0.22 |
2.64 |
9500 |
11.0 |
0.43 |
37 |
_ for B / S = Ball Bearing / Sleeve Bearing
