DC Fans 2cm ~5cm

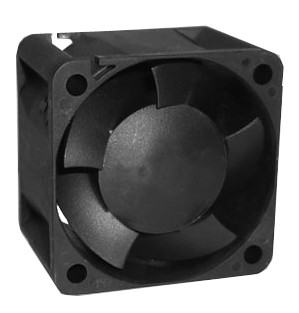

AD4028GV SERIES
- Size: 40 x 40 x 28mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 49.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 49.0g
Download PDF
AD4028GV SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4028V12BHWGV |
12 |
0.30 |
3.6 |
13000 |
15.2 |
0.92 |
43 |
|
② AD4028V12BUWGV |
12 |
0.40 |
4.8 |
15000 |
17.8 |
1.20 |
46 |
|
③ AD4028V12BVWGV |
12 |
0.60 |
7.2 |
17000 |
21.3 |
1.53 |
50 |
B = Ball Bearing
