DC Fans 2cm ~5cm

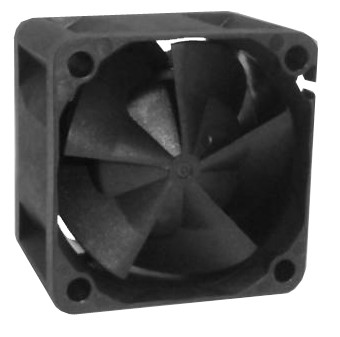

AD4028GK SERIES

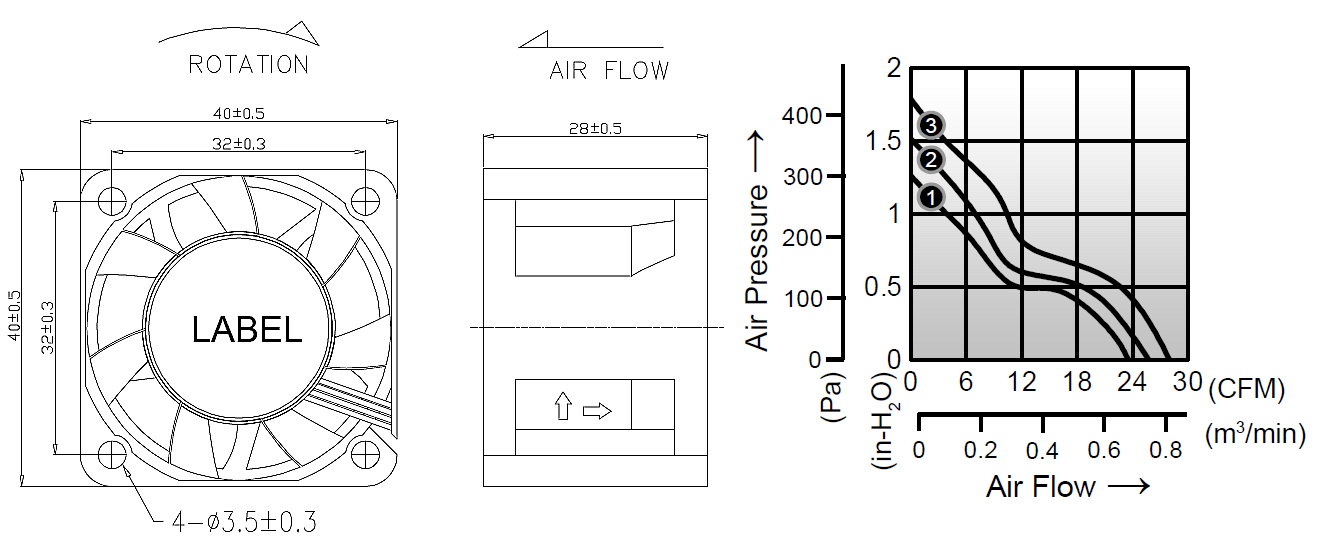

- Size: 40 x 40 x 28mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
Download PDF
AD4028GK SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4028V12BUWGK |
12 |
0.75 |
9.0 |
21000 |
23.52 |
1.26 |
60 |
|
② AD4028V12BVWGK |
12 |
0.90 |
10.8 |
23000 |
25.76 |
1.51 |
62 |
|
③ AD4028V12BWWGK |
12 |
1.00 |
12.0 |
25000 |
28.00 |
1.79 |
65 |
B = Ball Bearing
