DC Fans 2cm ~5cm

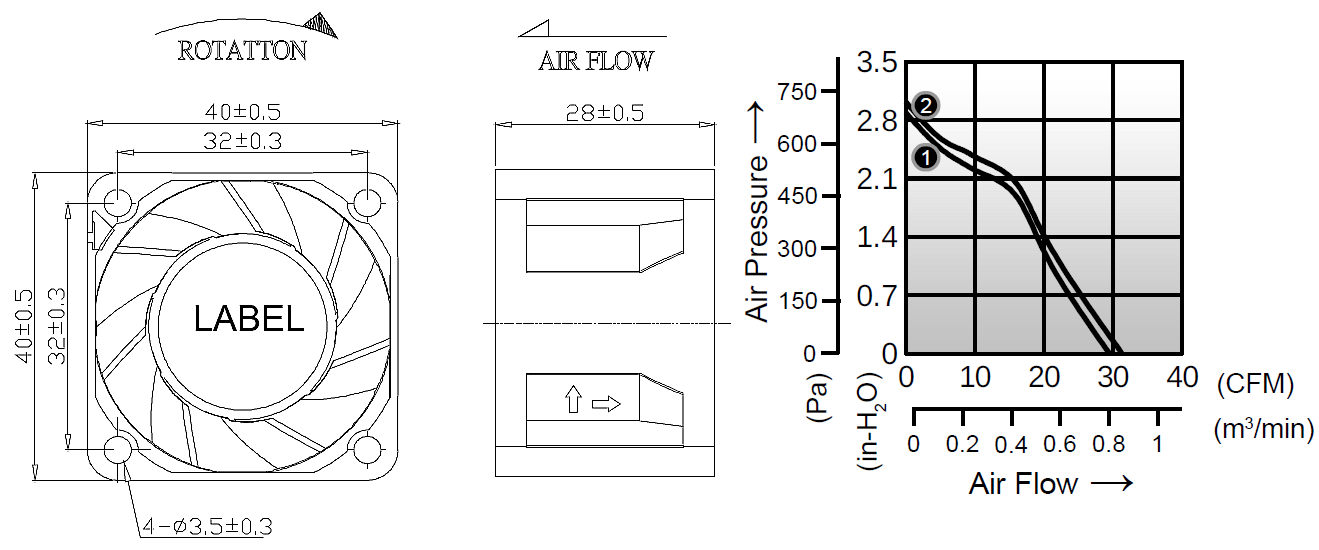

AD4028GD SERIES
- Size: 40 x 40 x 28mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD4028V12BVWGD |
12 |
1.10 |
13.2 |
21000 |
29.5 |
2.89 |
62 |
|
② AD4028V12BWWGD |
12 |
1.40 |
16.8 |
23000 |
31.3 |
3.02 |
64 |
B = Ball Bearing
