DC Fans 6cm ~9cm

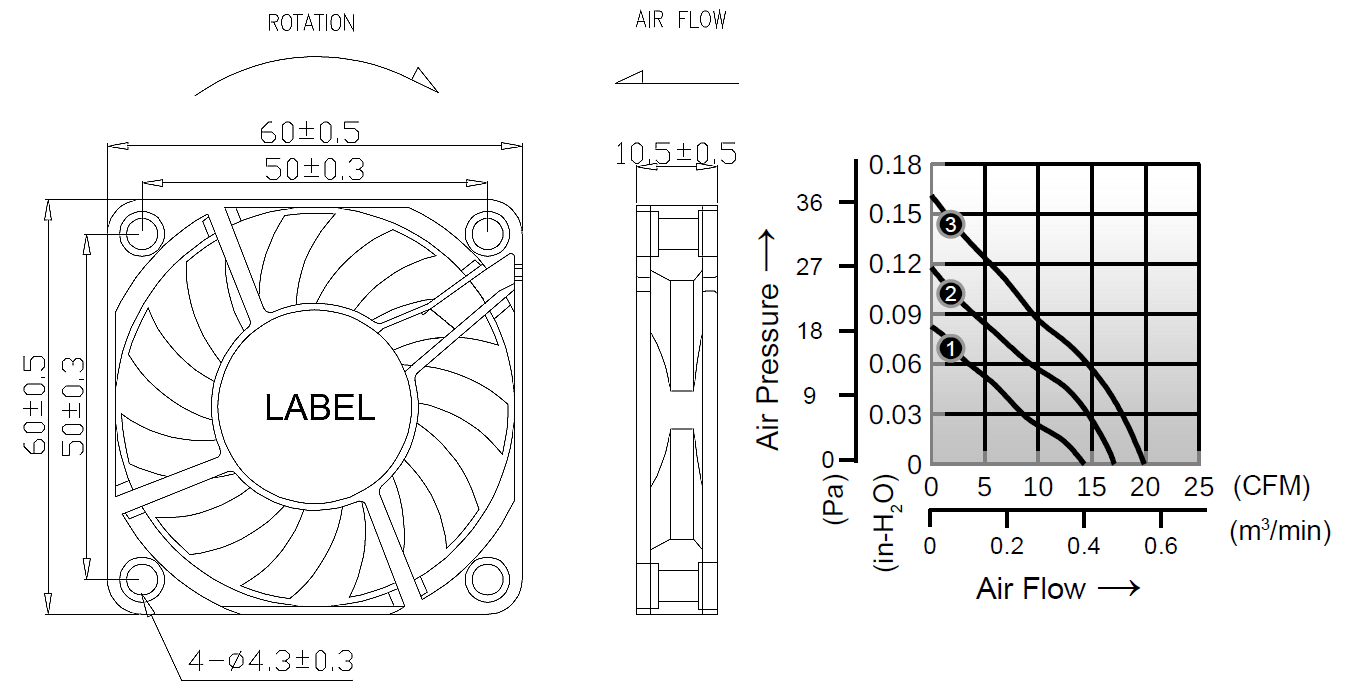

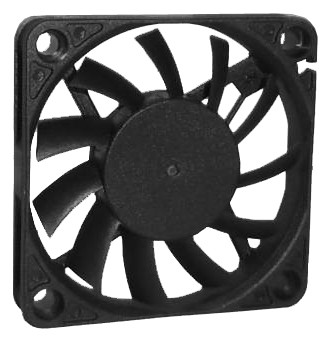

AD6010GE SERIES
- Size: 60 x 60 x 10mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 37.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 37.0g
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD6010V05_LWGE |
5 |
0.30 |
1.50 |
3500 |
14.3 |
0.08 |
28 |
|
① AD6010V12_LWGE |
12 |
0.14 |
1.68 |
3500 |
14.3 |
0.08 |
28 |
|
① AD6010V24_LWGE |
24 |
0.05 |
1.20 |
3500 |
14.3 |
0.08 |
28 |
|
② AD6010V05_MWGE |
5 |
0.38 |
1.90 |
4200 |
17.1 |
0.12 |
33 |
|
② AD6010V12_MWGE |
12 |
0.17 |
2.04 |
4200 |
17.1 |
0.12 |
33 |
|
② AD6010V24_MWGE |
24 |
0.08 |
1.92 |
4200 |
17.1 |
0.12 |
33 |
|
③ AD6010V05_HWGE |
5 |
0.42 |
2.10 |
4900 |
19.9 |
0.16 |
37 |
|
③ AD6010V12_HWGE |
12 |
0.20 |
2.40 |
4900 |
19.9 |
0.16 |
37 |
|
③ AD6010V24_HWGE |
24 |
0.10 |
2.40 |
4900 |
19.9 |
0.16 |
37 |
_ for B / F = Ball Bearing / Fluid Bearing
