DC Fans 6cm ~9cm

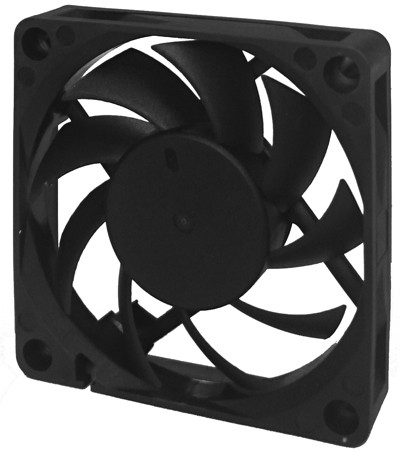

AD7015GE SERIES

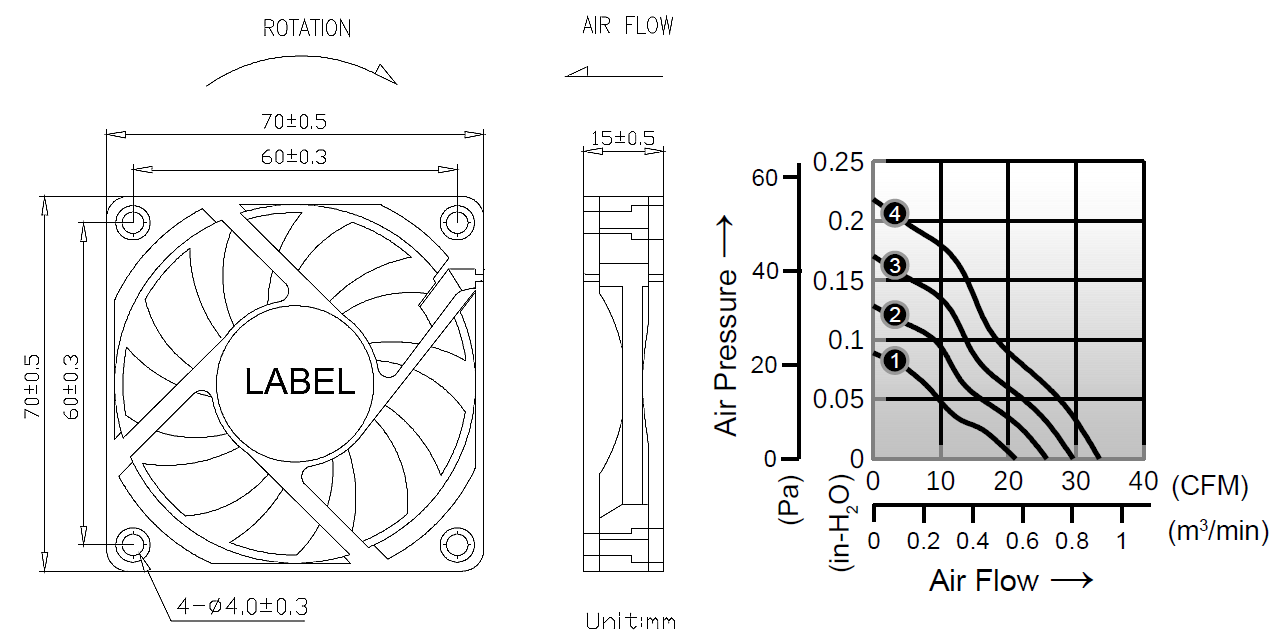

- Size: 70 x 70 x 15mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 50.0g
Download PDF
AD7015GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD7015V12_JWGE |
12 |
0.10 |
1.20 |
2800 |
21.1 |
0.09 |
27 |
|
② AD7015V12_LWGE |
12 |
0.12 |
1.44 |
3300 |
25.7 |
0.13 |
31 |
|
③ AD7015V12_MWGE |
12 |
0.17 |
2.04 |
3800 |
29.6 |
0.17 |
35 |
|
③ AD7015V24_MWGE |
24 |
0.10 |
2.40 |
3800 |
29.6 |
0.17 |
35 |
|
④ AD7015V12_HWGE |
12 |
0.25 |
3.00 |
4300 |
33.5 |
0.22 |
39 |
|
④ AD7015V24_HWGE |
24 |
0.12 |
2.88 |
4300 |
33.5 |
0.22 |
39 |
_ for B / S = Ball Bearing / Sleeve Bearing
