DC Fans 6cm ~9cm

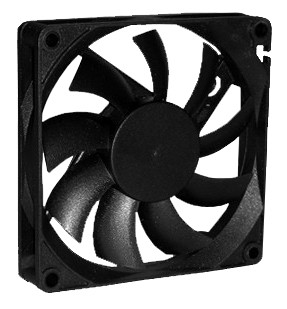

AD8015GE SERIES
- Size: 80 x 80 x 15mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 54.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 54.0g
Download PDF
AD8015GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD8015V12_JWGE |
12 |
0.06 |
0.72 |
2400 |
22.0 |
0.05 |
25 |
|
① AD8015V24_JWGE |
24 |
0.04 |
0.96 |
2400 |
22.0 |
0.05 |
25 |
|
② AD8015V12_LWGE |
12 |
0.10 |
1.20 |
2700 |
27.5 |
0.09 |
30 |
|
② AD8015V24_LWGE |
24 |
0.06 |
1.44 |
2700 |
27.5 |
0.09 |
30 |
|
③ AD8015V12_MWGE |
12 |
0.12 |
1.44 |
3100 |
31.5 |
0.10 |
32 |
|
③ AD8015V24_MWGE |
24 |
0.08 |
1.92 |
3100 |
31.5 |
0.10 |
32 |
|
④ AD8015V12_HWGE |
12 |
0.16 |
1.92 |
3600 |
37.6 |
0.15 |
36 |
|
④ AD8015V24_HWGE |
24 |
0.10 |
2.40 |
3600 |
37.6 |
0.15 |
36 |
|
⑤ AD8015V12_UWGE |
12 |
0.30 |
3.60 |
4500 |
45.2 |
0.21 |
43 |
_ for B / S / F = Ball Bearing / Sleeve Bearing / Fluid Bearing
