DC Fans 6cm ~9cm

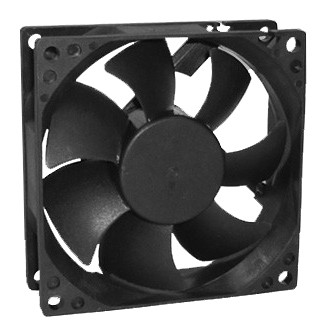

AD8025GC SERIES

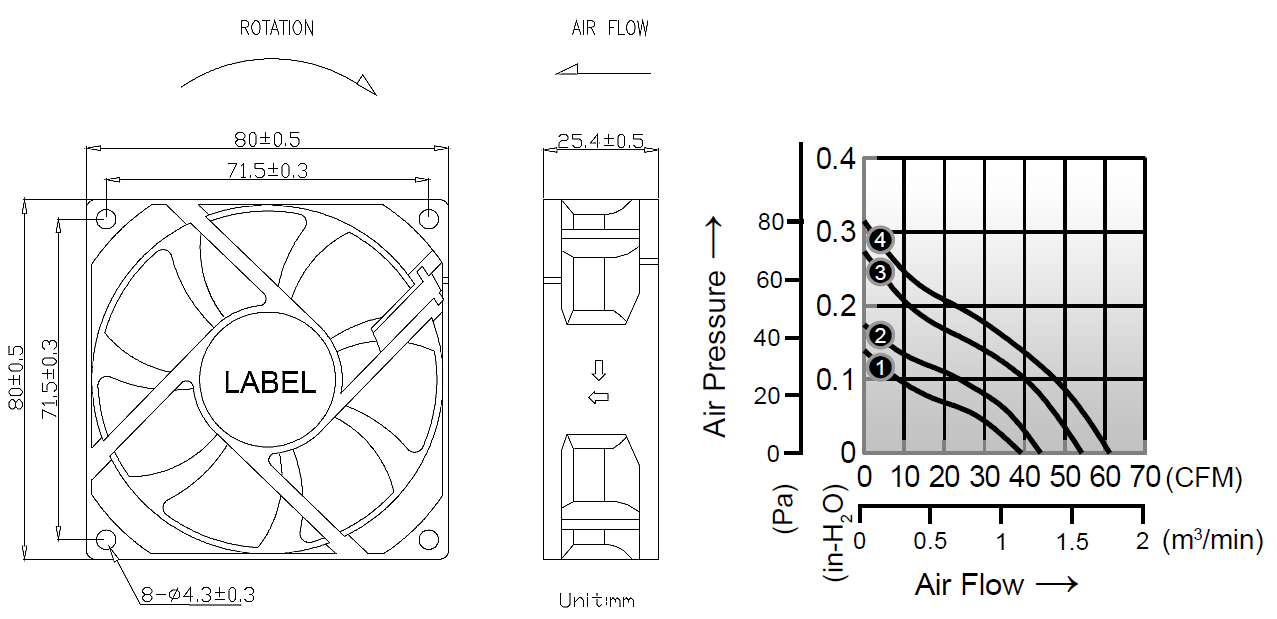

- Size: 80 x 80 x 25mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 85.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 85.0g
Download PDF
AD8025GC SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD8025V12_LWGC |
12 |
0.14 |
1.68 |
2700 |
34.6 |
0.12 |
28 |
|
① AD8025V24_JWGC |
24 |
0.08 |
1.92 |
2700 |
34.6 |
0.12 |
28 |
|
① AD8025V48_JWGC |
48 |
0.05 |
2.40 |
2700 |
34.6 |
0.12 |
28 |
|
② AD8025V12_MWGC |
12 |
0.20 |
2.40 |
3000 |
38.5 |
0.17 |
31 |
|
② AD8025V24_LWGC |
24 |
0.11 |
2.64 |
3000 |
38.5 |
0.17 |
31 |
|
② AD8025V48_LWGC |
48 |
0.07 |
3.36 |
3000 |
38.5 |
0.17 |
31 |
|
③ AD8025V12_HWGC |
12 |
0.24 |
2.88 |
3600 |
54.3 |
0.28 |
36 |
|
③ AD8025V24_MWGC |
24 |
0.20 |
4.80 |
3600 |
54.3 |
0.28 |
36 |
|
③ AD8025V48_MWGC |
48 |
0.07 |
3.36 |
3600 |
54.3 |
0.28 |
36 |
|
④ AD8025V12_UWGC |
12 |
0.44 |
5.28 |
4300 |
61.2 |
0.32 |
40 |
|
④ AD8025V24_HWGC |
24 |
0.20 |
4.80 |
4300 |
61.2 |
0.32 |
40 |
|
④ AD8025V48_HWGE |
48 |
0.11 |
5.28 |
4300 |
61.2 |
0.32 |
40 |
