DC Fans 6cm ~9cm

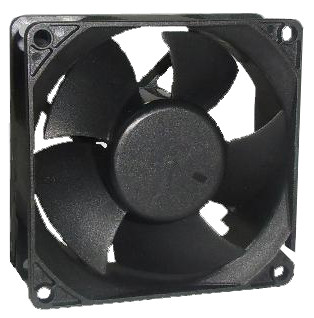

AD8032GE SERIES

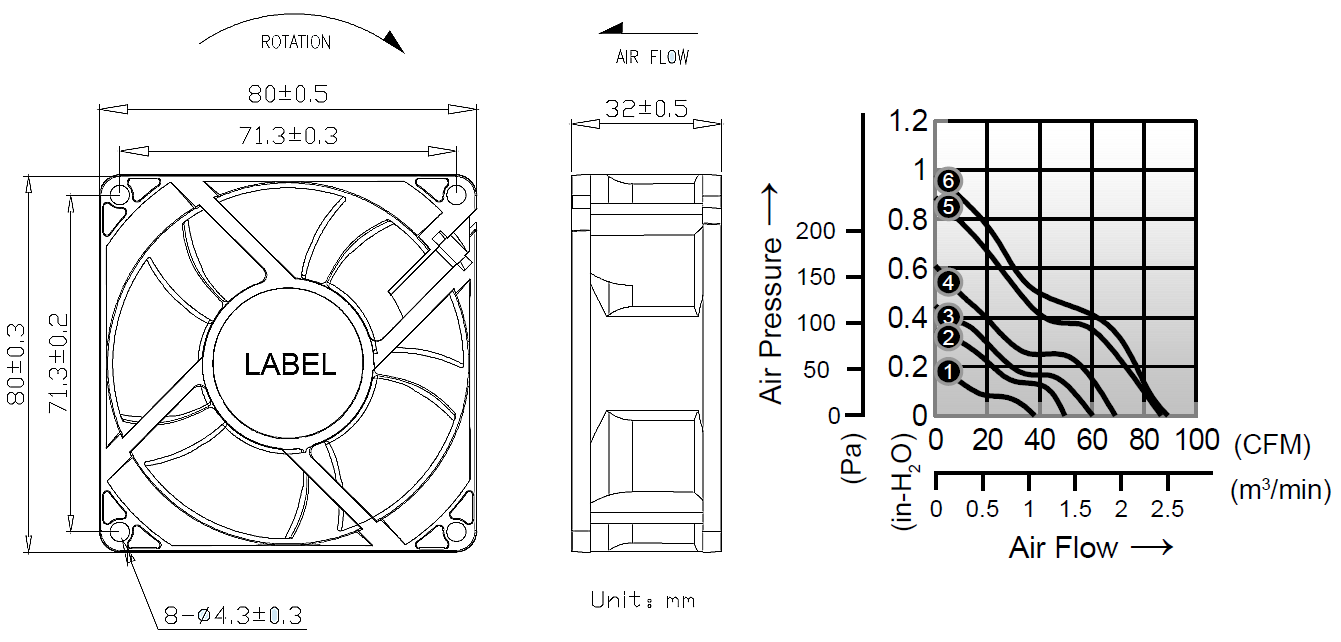

- Size: 80 x 80 x 32mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 120.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 120.0g
Download PDF
AD8032GE SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD8032V12BJWGE |
12 |
0.15 |
1.80 |
3000 |
38.2 |
0.20 |
31 |
|
② AD8032V12BLWGE |
12 |
0.20 |
2.40 |
4000 |
49.7 |
0.35 |
39 |
|
③ AD8032V12BMWGE |
12 |
0.35 |
4.20 |
4800 |
60.4 |
0.45 |
45 |
|
③ AD8032V24BJWGE |
24 |
0.35 |
8.40 |
4800 |
60.4 |
0.45 |
45 |
|
④ AD8032V12BHWGE |
12 |
0.50 |
6.00 |
5500 |
69.1 |
0.61 |
48 |
|
④ AD8032V24BLWGE |
24 |
0.50 |
12.00 |
5500 |
69.1 |
0.61 |
48 |
|
⑤ AD8032V12BUWGE |
12 |
0.80 |
9.60 |
6800 |
86.7 |
0.89 |
54 |
|
⑥ AD8032V24BMWGE |
24 |
0.75 |
18.00 |
7000 |
89.2 |
0.98 |
55 |
B = Ball Bearing
