DC Fans 6cm ~9cm

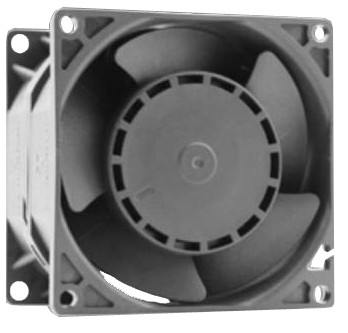

AD8056GB SERIES

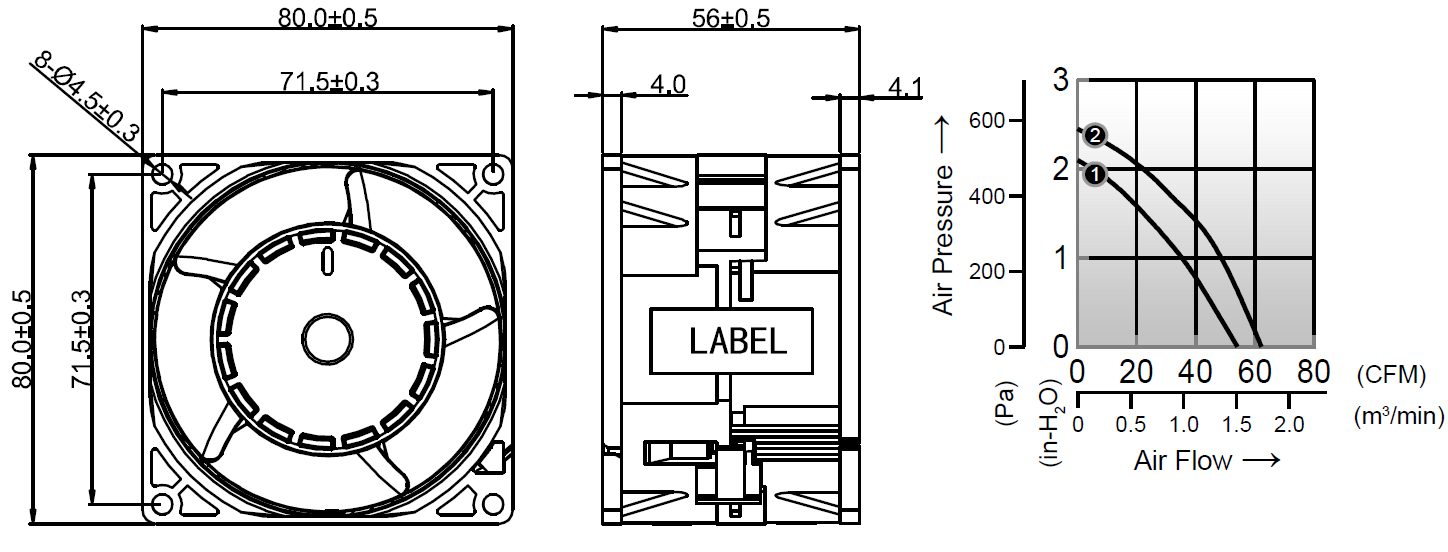

- Size: 80 x 80 x 56mm
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 308.0g
- Housing: Plastic (UL 94V-0)
- Impeller: Plastic (UL 94V-0)
- Motor: 4 Pole Brushless DC Motor
- Operating Temperature: -10°C ~ +70°C
- Insulation: Class A
- Weight: 308.0g
Download PDF
AD8056GB SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(inH2O) |
dB(A) |
|
|
① AD8056V12BMWGB |
12 |
0.40 |
4.80 |
8000 |
54.1 |
2.10 |
64 |
|
7400 |
|||||||
|
② AD8056V12BHWGB |
12 |
0.25 |
3.00 |
9600 |
62.2 |
2.45 |
68 |
|
8300 |
