DC Centrifugal Fans

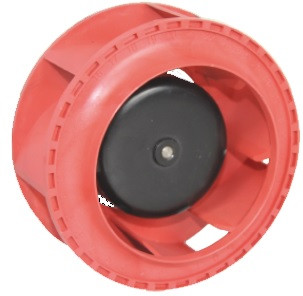

CFD13629L SERIES
- Size: Φ133 x 62mm
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 740g
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 740g
Download PDF
CFD13629L SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
CFD1362V24BUW9L |
24 |
1.6 |
38.4 |
4000 |
212.2 |
36.8 |
65 |
|
CFD1362V48BUW9L |
48 |
0.8 |
38.4 |
4000 |
212.2 |
36.8 |
65 |
|
CFD1362V48BUW9L |
48 |
1.3 |
62.4 |
4500 |
247.5 |
41.5 |
70 |
W: Lead Wires
B: Ball Type
