DC Centrifugal Fans

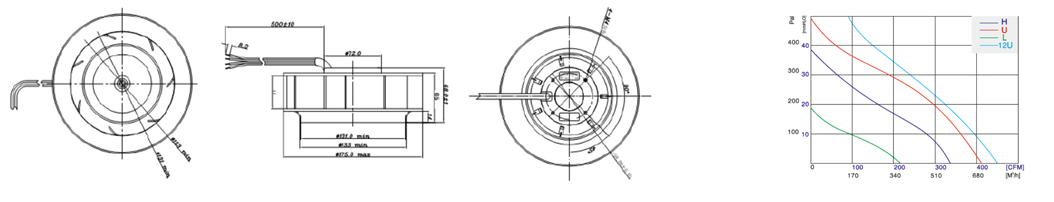

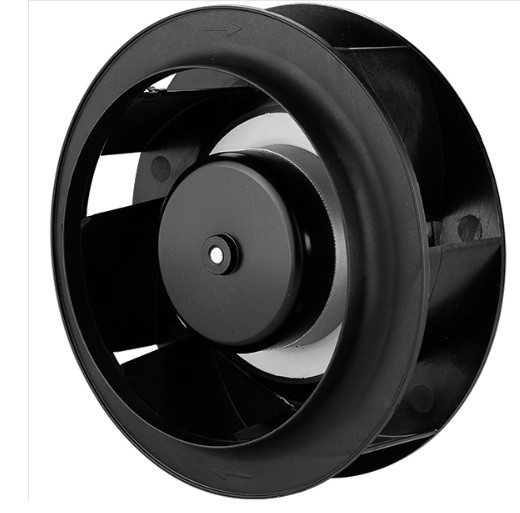

CFD17659L SERIES

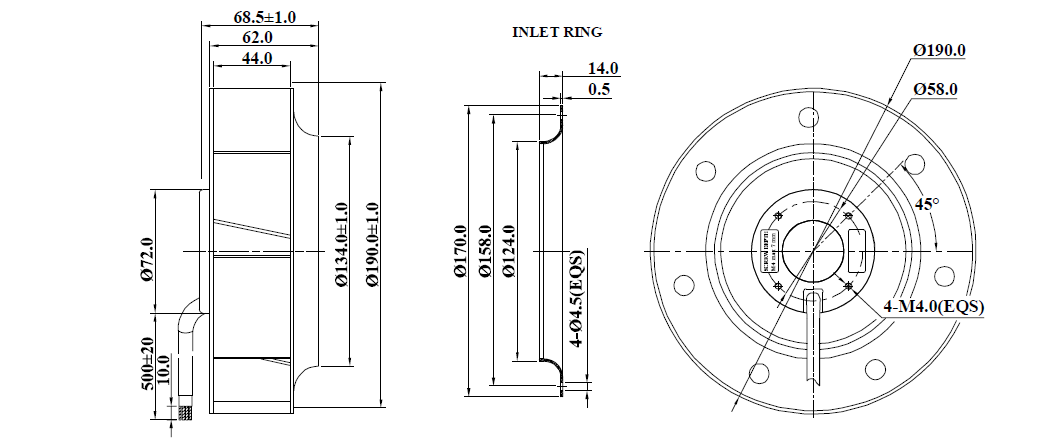

- Size: Φ175 x 65mm
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 800g
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 800g
Download PDF
CFD17659L SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
CFD1765V12BUW9L |
12 |
10 |
120 |
4400 |
450 |
72 |
75 |
|
CFD1765V24BUW9L |
24 |
2.3 |
55.2 |
3800 |
369 |
43.7 |
70.5 |
|
CFD1765V24BHW9L |
24 |
2.3 |
55.2 |
3300 |
330 |
38.1 |
64 |
|
CFD1765V28BUW9L |
28 |
4 |
112 |
4400 |
428 |
50.7 |
85 |
|
CFD1765V48BUW9L |
48 |
2.3 |
110.4 |
4200 |
408 |
48.4 |
81 |
|
CFD1765V48BHW9L |
48 |
1.2 |
57.6 |
3300 |
330 |
38.1 |
64 |
|
CFD1765V48BLW9L |
48 |
0.55 |
26.4 |
2500 |
215 |
18.1 |
60 |
W: Lead Wires
B: Ball Type
