DC Centrifugal Fans

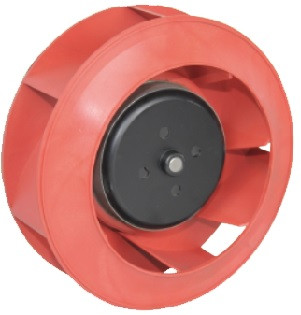

CFD19619L SERIES
- Size: Φ190 x 61mm
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 800g
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 800g
Download PDF
CFD19619L SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
CFD19061V24BHW9L |
24 |
1月3日 |
3月24日 |
3000 |
325 |
46 |
62 |
|
CFD19064V48BHW9L |
48 |
1.8 |
86.4 |
3000 |
325 |
46 |
62 |
W: Lead Wires
B: Ball Type
