DC Centrifugal Fans

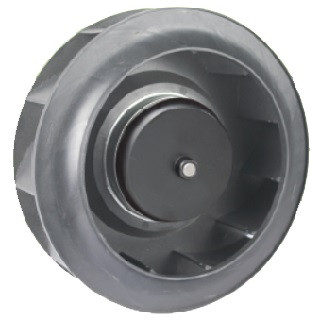

CFD22649L SERIES
- Size: Φ220 x 64mm
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 1500g
- Impeller: Plastic & Metal
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -25°C to + 65°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 1500g
Download PDF
CFD22649L SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
CFD2264V24BHW9L |
24 |
4.5 |
108 |
2800 |
573 |
61.2 |
65 |
|
CFD2264V48BHW9L |
48 |
2.3 |
110.4 |
2800 |
573 |
61.2 |
65 |
W: Lead Wires
B: Ball Type
