DC Centrifugal Fans

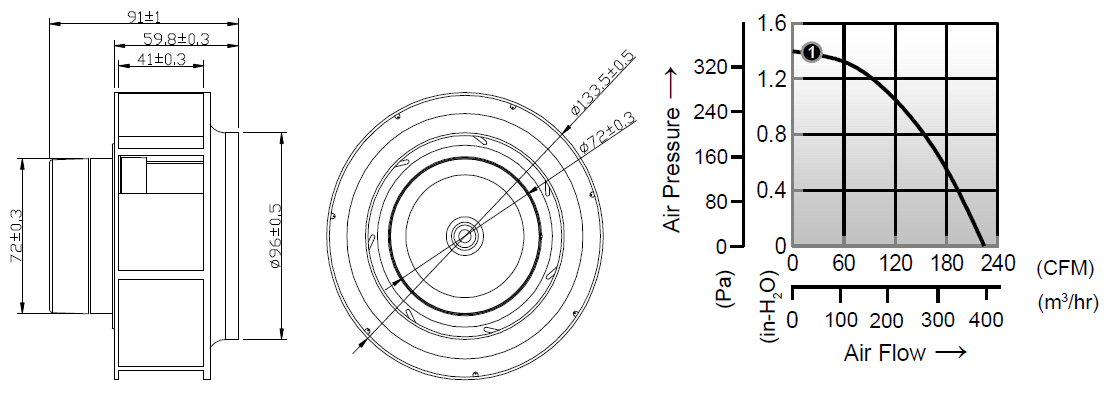

CFD13391 SERIES
- Size: Ø133 x 91mm
- Impeller: Plastic (UL 94V-0)
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -10°C to + 70°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 700g
- Impeller: Plastic (UL 94V-0)
- Motor: DC Blushless Motor External Rotor
- Operating Temperature: -10°C to + 70°C
- Insulation: Class B
- Connection: Lead Wire
- Bearing: Ball Type
- Weight: 700g
Download PDF
CFD13391 SERIES (2020)
|
Model Number |
Voltage |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
|
(V) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
|
|
① CFD13391V24BUWGN |
24 |
1.6 |
38.4 |
4000 |
224.0 |
35.56 |
65 |
|
① CFD13391V48BUWGN |
48 |
0.8 |
38.4 |
5000 |
224.0 |
35.56 |
65 |
W: Lead Wires / B: Ball Type
