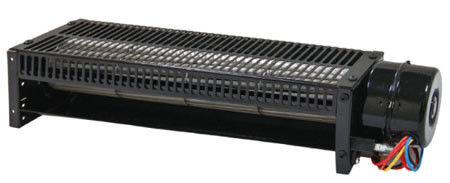

AC CROSS FLOW FANS
CA060V SERIES
- Size: ø60mm
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Motor Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
- Housing / Impeller: Aluminum / Aluminum
- Motor: AC Capacity Motor Type
- Operating Temperature: 0°C ~ +45°C
- Insulation: Class A
Download PDF
CA060V SERIES (2020)
|
Model Number |
Size (mm) |
Voltage |
Frequency |
Current |
Power |
Speed |
Air Flow |
Pressure |
Noise |
Weight |
||
|

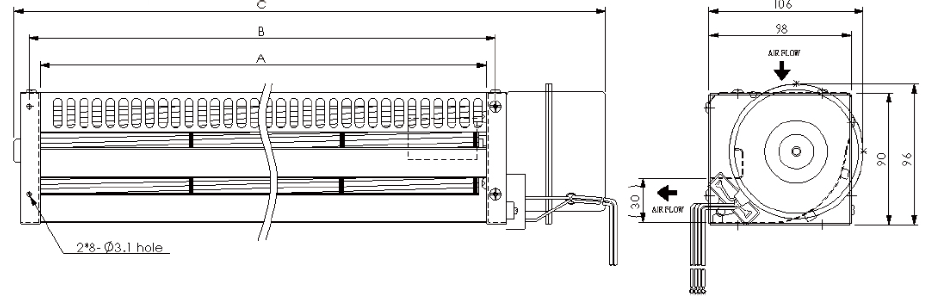

A |
B |
C |
(V) |
(Hz) |
(A) |
(W) |
(RPM) |
(CFM) |
(mmH2O) |
dB(A) |
(g) |
|
|
CA06030_ _HWV |
306 |
321 |
405 |
110 |
60 |
0.34 |
38 |
2600 |
183 |
12 |
53 |
1750 |
|
120 |
60 |
0.34 |
41 |
2700 |
205 |
12 |
53 |
|||||
|
220 |
50/60 |
0.15/0.18 |
32/40 |
2400/2600 |
166/183 |
9/12 |
50/53 |
|||||
|
230 |
50 |
0.15 |
33 |
2500 |
181 |
8.5 |
52 |
|||||
|
CA06036_ _ HWV |
368 |
383 |
467 |
110 |
60 |
0.37 |
41 |
2500 |
209 |
11 |
54 |
1850 |
|
120 |
60 |
0.38 |
46 |
2600 |
235 |
11 |
56 |
|||||
|
220 |
50/60 |
0.15/0.19 |
35/43 |
2400/2400 |
195/195 |
8/11 |
53/54 |
|||||
|
230 |
50 |
0.16 |
36 |
2400 |
212 |
10 |
53 |
|||||
|
CA06042_ _HWV |
429 |
444 |
528 |
110 |
60 |
0.38 |
41 |
2500 |
247 |
12 |
54 |
1950 |
|
120 |
60 |
0.39 |
46 |
2600 |
265 |
11.5 |
55 |
|||||
|
220 |
50/60 |
0.16/0.2 |
35/43 |
2400/2400 |
237/237 |
9/11 |
53/53 |
|||||
|
230 |
50 |
0.16 |
37 |
2500 |
247 |
9 |
54 |
|||||
_ for B / S = Ball Bearing / Sleeve Bearing
